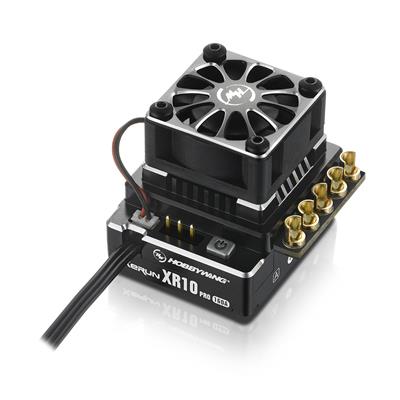

HOBBYWING XR10 PRO V4 BLACK

Online stock ships in 3-4 days

SKU: HW30112600

High Power Output



Continuous current of 160A and peak current of up to 1200A guarantees a stable and high power output during competitions.



Special Design for Top Racing



Reliable hardware combined with intelligent software (containing 10 common select-to-use profiles)

creates an ideal power solution to 1/10th scale top touring car, Pan car and buggy racing.



Programming / Upgrading / Data reading wirelessly



With Hobbywing’s “WiFi Express” module and iPhone or an Android phone (with the HOBBYWING WiFi Link software installed), the user can remotely program parameters, upgrade firmware and check relevant data of the ESC without leaving the control stand.



Adjustable Throttle & Brake PWM Frequencies



Independent and adjustable throttle & brake PWM frequencies guarantee precise and accurate

throttle and brake control for all classes of competitions (esp. the Stock class).



Efficient Heat Dissipating System



The aluminum casing and reticular heat sink combined with the HOBBYWING patented

copper heat-conductive plates which are attached to the MOSFET board allows the internal

heat to be quickly transferred to the heat sink for dissipation. With the high-performing detachable

cooling fan, a highly reliable heat transfer system for maximum cooling is accomplished.



High current/voltage BEC



The built-in switch mode BEC with a maximum output of 8A and voltage adjustable

between 6V and 7.4V allows the user to use various high voltage servos.



Separate Programming/Fan Port



The separate PRG/FAN port on the ESC can power an external fan to maximize cooling performance or connect the ESC to a LCD program box or WiFi module for ESC programming.



Built-in Electronic Switch



The internal electronic switch with a lifespan of over 50000 on/off cycles completely solves the problems like stuck reed, rusted contact points, and automatic shutdown conventional mechanical switches often have.



Innovative data-logging Function



This ESC features the data-logging function which can record the maximum ESC/motor temperature, RPM and etc. in

real time and allows the user to analyze the recorded data via a the LCD program box or WiFi module after each use.



Specification





Cont./Peak Current - 160A / 1200A



BEC Voltage/Current - 6V/7.4V,4A



BEC Voltage Regulation - Switch Mode



Fan is Powered by - Powered by the BEC (prolongs the service life of the fan)



Fan shroud - Yes



Fan Speed - High



Remote Off - Enabled/Disabled Switchable



(Motor) Drive Mode - Full Sensored/ Sensored or Sensorless Hybrid



COAST - Switchable



PWM Drive Frequency - 0-20% Adjustable



Brake Frequency - 1K/2K/4K/8K/12K/16K Adjustable



Brake Mode - 0.5K/1K/2K/4K Adjustable



Boost Timing Activation - Linear/Traditional/Hybrid Adjustable



RPM/Auto Adjustable



Input Wires - Black-13AWG-200mm*2



Output Wires - Black-13AWG-200mm*3



Input Connectors - No



Output Connectors - No



ESC Programing via



SET Button on ESC - Not Supported



LED Program Box - Not Supported



LCD Program Box - Supported



WiFi Module - Supported



Programming Port - Separate



Firmware Upgrade - Supported



Size - 37.5X31.6X31.6mm



Weight - 95g



Motors - SL BL Motors / SD BL Motors



Vehicles - 1/10th Touring Car/Buggy/Top Racing, 1/10th Drift Car/F1, 1/10th & 1/8th Crawler



KV Rating/T/Count - 2S LiPo/6S NiMH: (Touring Car) T≥3.5T, (Buggy) T≥4.5T.



3S LiPo/9S NiMH: (Touring Car) T≥6.5T, (Buggy) T≥8.5T.
