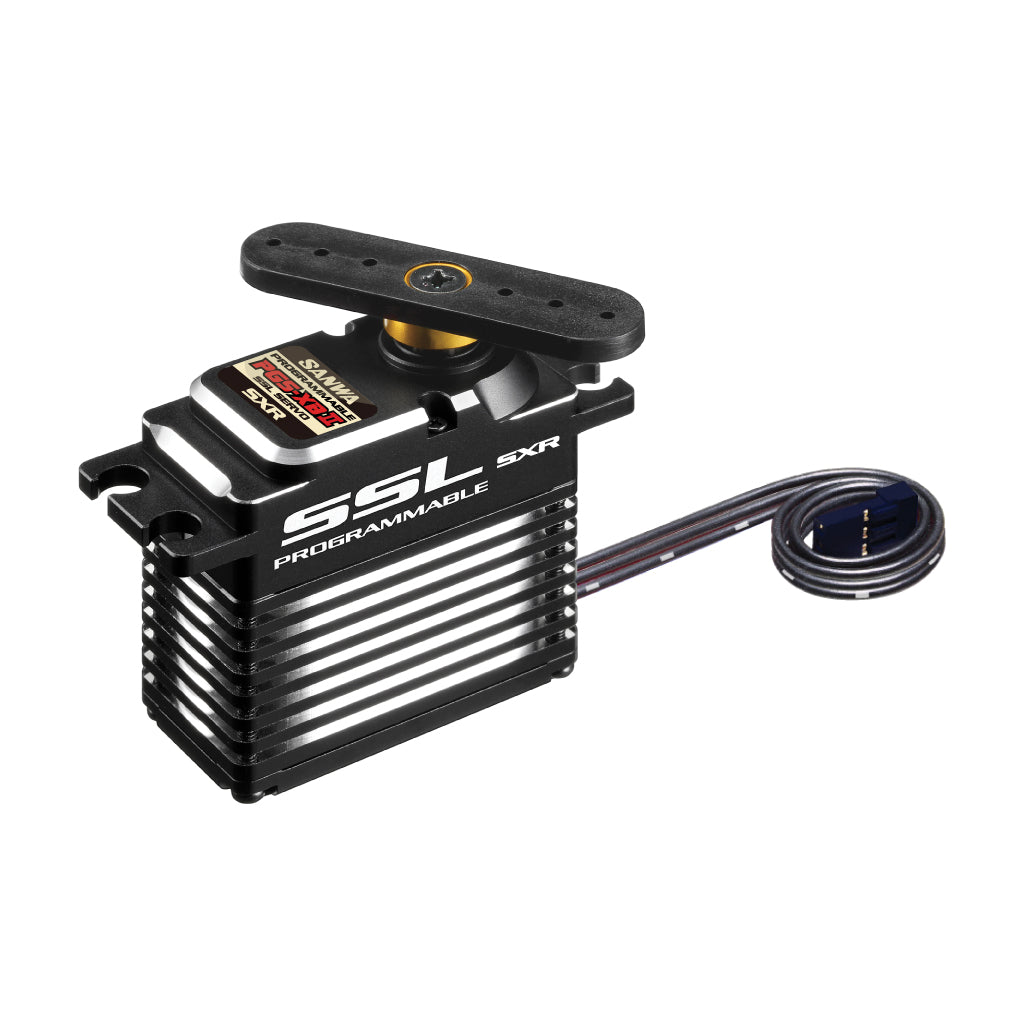

Sanwa PGS-XB2 Servo SKU: SA107A54563A

Supplier stock to order

Description

FH5U: SXR(SANWA XTREME RESPONSE) MODE-COMPATIBLE

- SSL-COMPATIBLE PROGRAMMABLE SERVO

# Compatible with CODE 10 (M12S, EXZES ZZ, MT-44)

Not Compatible with CODE 5 (M12, EXZES Z, MT-4S, MT-4, MT-S)

- PGS SETTING GEAR-COMPATIBLE

- SUPER RESPONSE (SSR) MODE-COMPATIBLE

- HIGH RESPONSE (SHR) MODE-COMPATIBLE

- Li-Po 2 CELL-COMPATIBLE

- HIGH TORQUE TYPE

- BRUSH LESS MOTOR

- FULL ALUMINUM CASE

- FULL METAL GEAR (Strengthening Gears)

- AL HEAT SINK

- Black Harness

Programmable Servo to be compatible with SSL & Telemetry at Launch

- Setting Adjustment by wireless from Radio

- Setting Adjustment to connect Servo with Setting Gear

- Regarding Temperature, Current, Voltage and Volume Position on Servo inside,

Telemetry-transmission can be passed to Radio.

# Initial Setting on Setting Gear is necessary.

- Setting Items

- SSL-CH (SSL Channel Setting) - STRETC (Stretcher Adjustment) - BOOST (BOOST Adjustment)

- D-Band (Dead Band Adjustment) - MV-MID (Middle Torque Adjustment)

- MV-END (Later Torque Adjustment) - BREAK (Break Adjustment)

?MV-HOLD (Power Adjustment at whole area) ?MV-FRQ (Feeling Adjustment at whole area)

?MAX-PW (MAX Duty Adjustment)

? Setting Gear is necessary for ?setting.

Speed

0.11 sec/60 (7.4V)

0.14 sec/60 (6.0V)

Torque

21.1 kg/cm (7.0V)

17.9 kg/cm (6.0V)

Dimensions

40.5x20.5x38.7 mm

Weight

72 g
