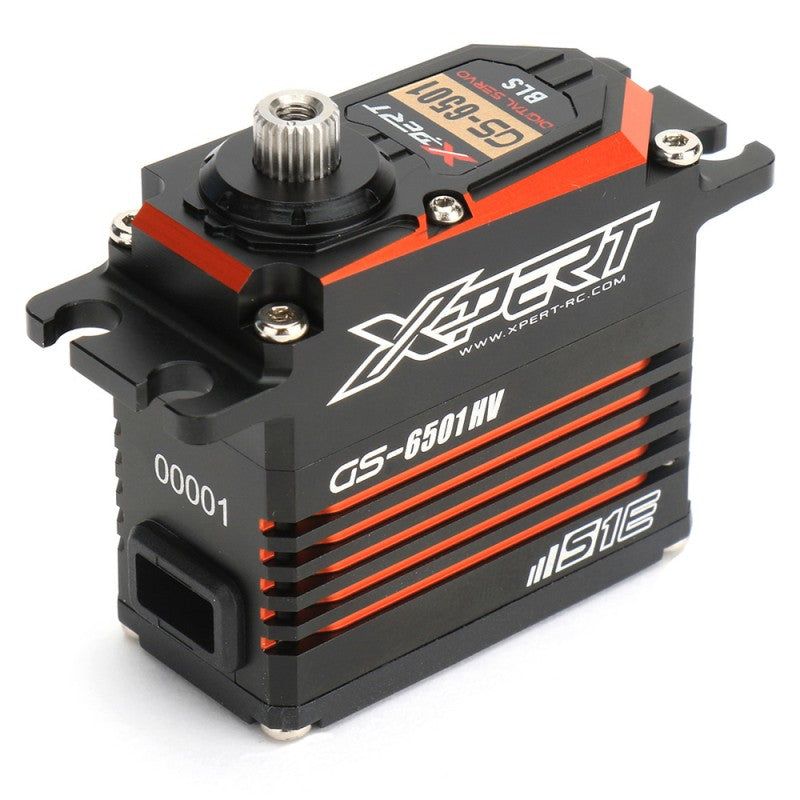

SKU: XP-GS-6501-HV-S1E Xpert RC GS-6501-HV S1E Brushless Servo 28.4kg/0.115 sec @ 7.4v

Online stock ships 3-4 days

Huge Torque, awesome speed. Perfect choice for demanding 1/8th off road installs in Buggy or Truggy for either Steering or Throttle and Brake.

Xpert Servos are a range of high spec servos, ALL of which are brushless for reduced current draw, increased efficiency and reduced running temperatures. The latest spec GS Servos feature quick release connectors for easy cleaning and maintenance of your radio tray.

Xpert RC have been developing this range for some time now and have been carrying out extended durability testing and performance testing is some of the toughest fields in the market including 1/8th Buggy and Truggy as well as some very large high demand flight units.

Xpert have taken a quality first approach with the entire range and focus on high performance.

The quality of these servos has stunned us, featuring very precise PCB production and use of only the highest quality components. The quality is apparent as soon as the servo is first seen but becomes even more apparent when used exhibiting extreme accuracy and position holding.

Features:

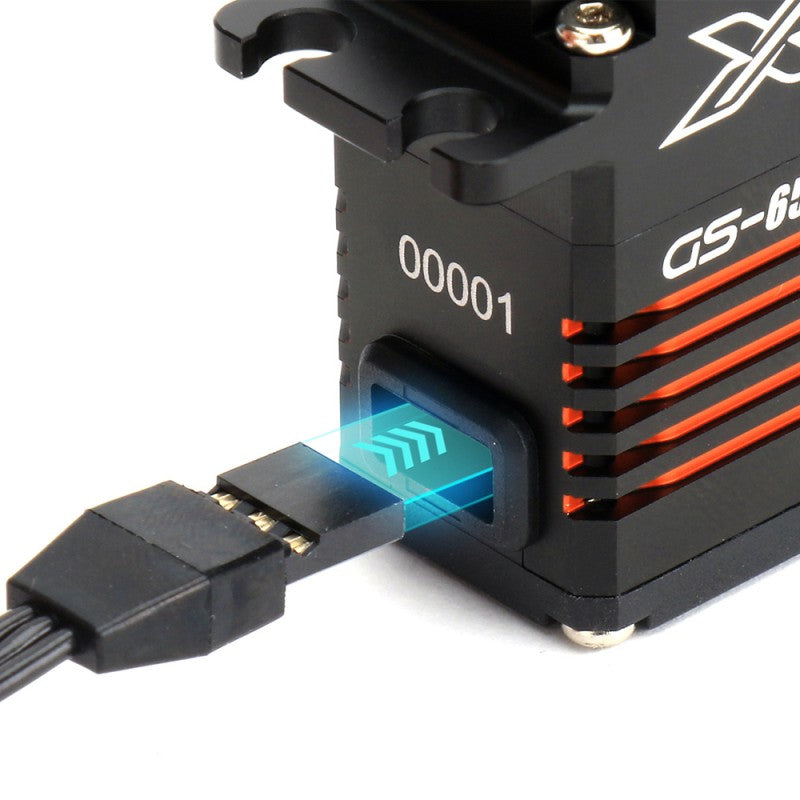

• Quick release cable that allows easy and quick installation for all helicopters.

• Brushless motor design provides extremely high speed, top efficiency, and low power consumption.

• Ultra-High performance design specifically for 1/10 and 1/8 surface competitions.

• Supports most high-speed response radio systems on the market

• All Aluminium case for the best thermal dissipation and durability.

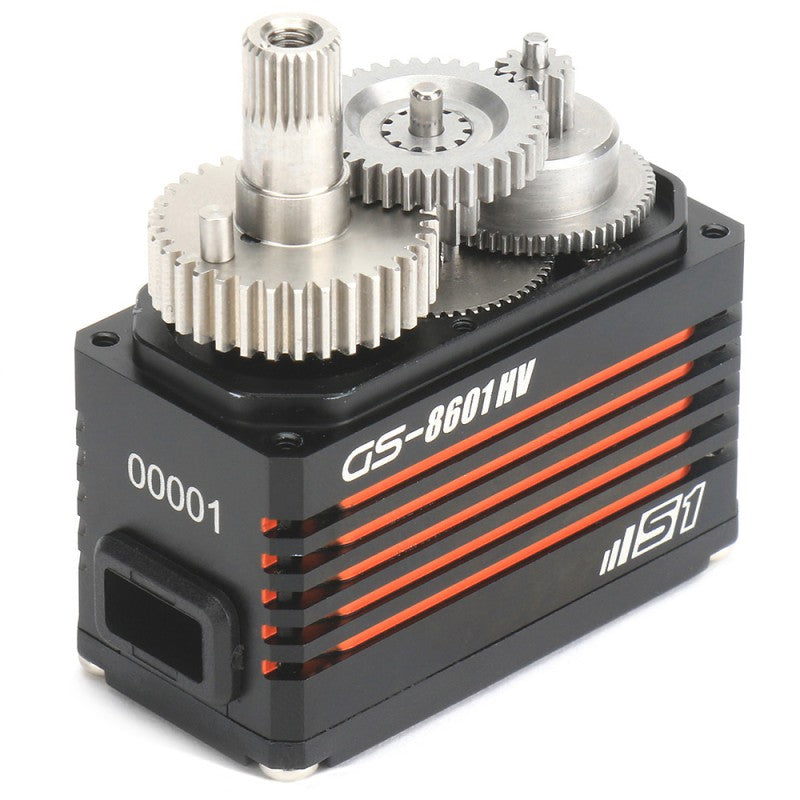

• All-new full stainless steel gears prolong the durability

• Enlarged 2mm gear alignment pins for improving the durability under impact

• Water-resistance structure

• 25T output shaft

• Over-current protection

• Over temperature protection

Specification:

Type: Standard

Product Name: GS-6501-HV S1E Standard Size Aluminium Servo

Part Number: GS-6501-HV

Input Voltage: 5.0V~8.4V

Speed (sec/ 60°): @6.0V: .139 sec/60° @7.4V: .115 sec/60° @8.4V: .113 sec/60°

Torque (oz/in): @6.0V: 350 oz-in @7.4V: 394 oz-in @8.4V: 417 oz-in

Torque (kg/cm): @6.0V: 25.2 kg-cm @7.4V: 28.4 kg-cm @8.4V: 30.0 kg-cm

Dimensions: 40.0mm x 20.0mm x 44.3mm

Weight: 71g

Range: 250us-500us,500us-1000us, 1000u-2000us (Auto adaptive)

Applications: 1/8 Buggy/Truggy and 1/10 Surface - Steering and Throttle

Gear Set P/N: XGS-S232
