SWORKz S12-2C EVO Limited (Carpet Edition) 1/10 2WD Buggy Kit

SWORKz S12-2C EVO Limited (Carpet Edition) 1/10 2WD Buggy Kit

SKU: SW-910033CEL

Back order with supplier expected any day

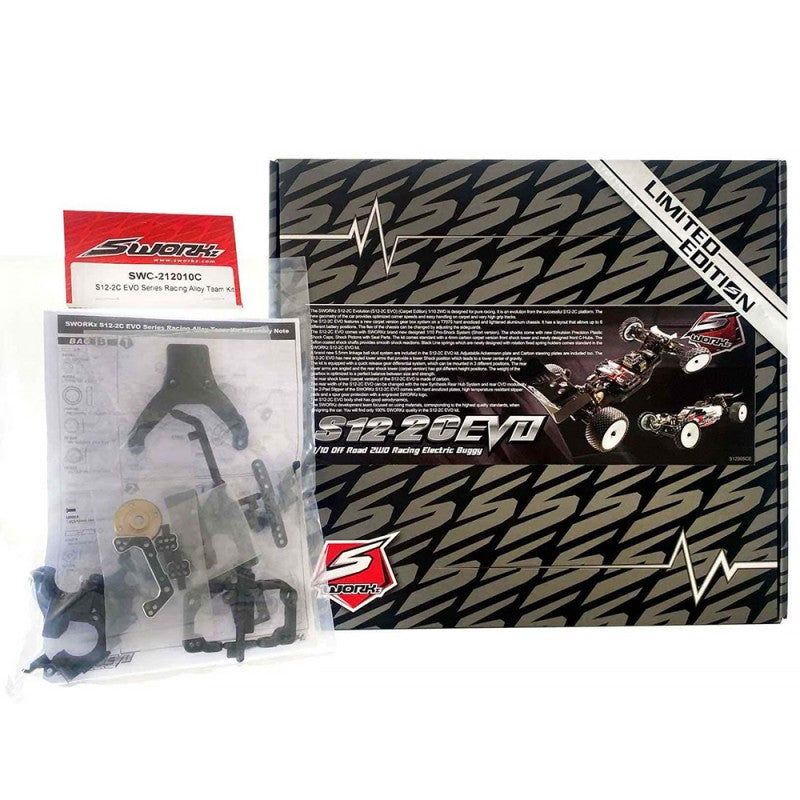

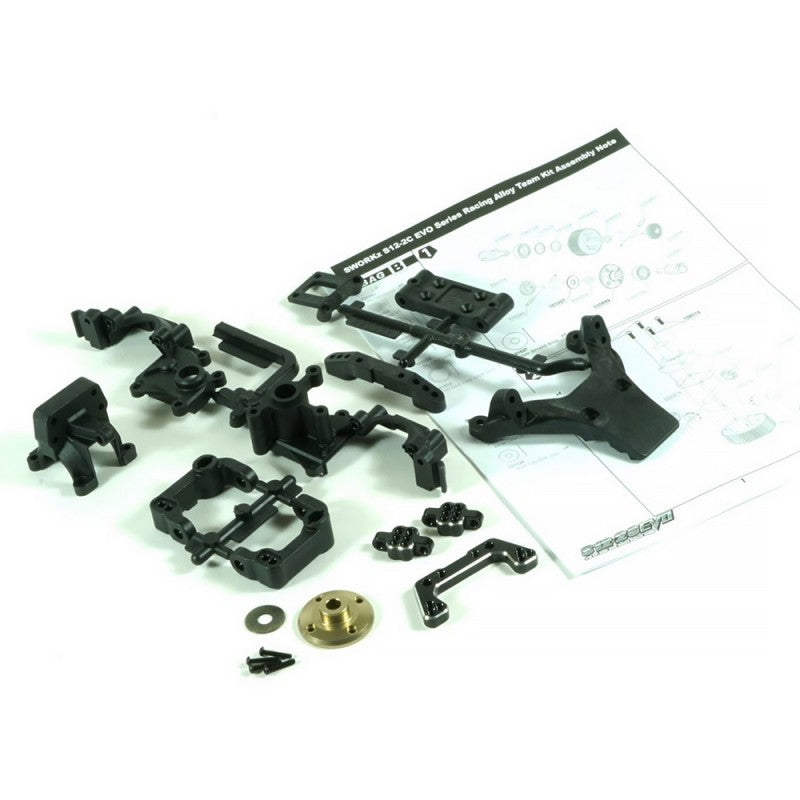

This new Limited Edition version of the popular SWORKz S12-2C Evo Carpet includes ther new 'Limited Edition' upgrade pack which features the most popular range of upgrades as used by SWORKz's own professional factory drivers, which include;

•NEW SW-220039D SWORKz S12-2 Front Arm Holder Plastic Parts (Durable Pro)

•NEW SW-220041-3D SWORKz S12-2 Middle Front Motor Gear Box Cover (Durable Pro)

•NEW SW220041MF S12-2 SWORKz Middle Front Motor Position Gear Box Reinforced

•NEW SW-220034A SWORKz S12-2 Front C-Hub Set Pro Composite Material Durable Type (L&R)

•NEW SW-332029 SWORKz S12-2 Aluminium Rear Upper Linkage Mount

•NEW SW-330689 SWORKz S12-1M optional Aluminium Gear Diff Case Plate

•NEW SW-332041 SWORKz S12-2 Synthesis Aluminium Rear Hub Linkage Plate  (X2)

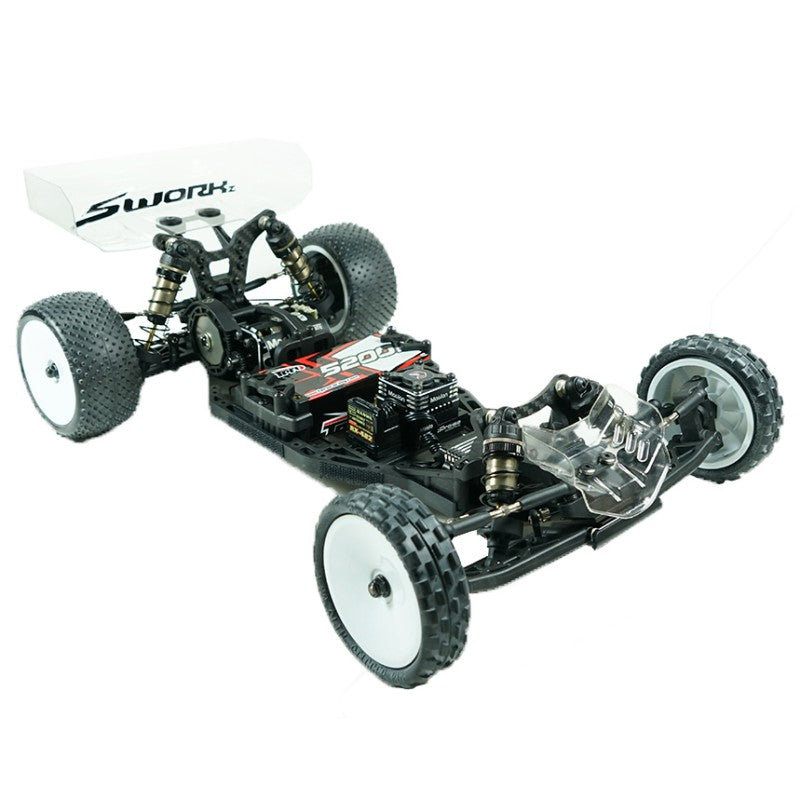

The new S12-2C EVO Limited is an evolution from the successful S12-2C platform. The new geometry of the car provides optimised corner speeds and easy handling on carpet and very high grip tracks. The S12-2C EVO features a new carpet version gear box system on a T7075 hard anodised and lightened aluminium chassis. It has a layout that allows up to 6 different battery positions. The flex of the chassis can be changed by adjusting the side guards

The S12-2D Limited features a new dirt version gear box system, fitted on a new T7075 hard anodised and lightened aluminium chassis, with a new layout that allows up to 6 different battery positions. The flex of the chassis can be changed by adjusting the side guards.

The S12-2C EVO comes with SWORKz brand new designed 1/10 Pro-Shock System (Short version). The shocks come with new Emulsion Precision Plastic Shock Caps, Shock Pistons with Seal Parts. The kit comes standard with a 4mm carbon carpet version front shock tower and newly designed front C-Hubs. The Teflon coated shock shafts provides smooth shock reactions. Black Line springs which are newly designed with rotation fixed spring holders comes standard in the SWORKz S12-2C EVO kit.

A brand new 5.5mm linkage ball stud system are included in the S12-2C EVO kit. Adjustable Ackerman plate and Carbon steering plates are included too. The S12-2C EVO has new angled lower arms that provide a lower Shock position which leads to a lower centre of gravity

The kit is equipped with a quick release gear differential system, which can be mounted in 3 different positions. The rear lower arms are angled and the rear shock tower (carpet version) has got different height positions. The weight of the gearbox is optimised to a perfect balance between size and strength

The rear shock tower (carpet version) of the S12-2C EVO is made of carbon. The wing mount holder's height and angle can be adjusted. The rear width of the S12-2C EVO can be changed with the new Synthesis Rear Hub System and rear CVD modularity.

The SWORKz S12-2C EVO has a front sway bar and a completely new rear sway bar holder system. The 2-Pad Slipper of the SWORKz S12-2C EVO comes with hard anodised plates, high temperature resistant slipper pads and a spur gear protection with a engraved SWORKz logo. The 2-Pad Slipper of the SWORKz S12-2D Limited comes with hard anodised plates, high temperature resistant slipper pads and a spur gear protection with engraved SWORKz logo.

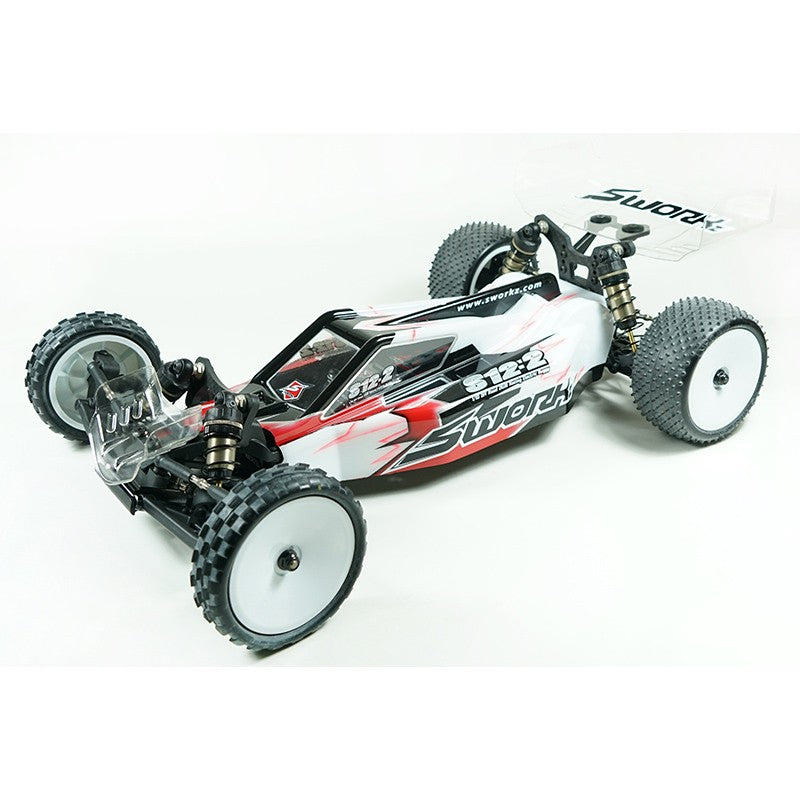

The S12-2C EVO body shell has good aerodynamics. The SWORKz development team focused on using materials, corresponding to the highest quality standards, when designing the car. You will find only 100% SWORKz quality in the S12-2C EVO kit.

Features:

• T7075 hard anodised & lightened aluminium chassis
• Adjustable flex system with various side guards
• 6 different battery positions
• 4mm Carbon shock tower
• New C-Hub geometry
• Changeable Ackerman plate
• Carbon steering knuckle plates
• Front sway bar system
• Super light anodised front wheel axles
• Front wing mount with 65mm front wing
• Front aluminum toe in plate
• Front lower arms in angled design
• Easy adjustable Ackerman plate
• The brand 5.5mm linkage ball stud system
• Adjustable differential position
• Quick differential release system
• Lower shock position design with adjustable shock tower position
• Brand new design SWORKz 1/10 Pro Shock System (Shorty version)
• Adjustable rear wing height
• Adjustable rear wing angle
• Rear width adjustable with hubs included length adjustable CVD
• New Synthesis Rear Hub System
• Fully adjustable square aluminium toe in plate „SWORKz“ engraved
• New designed rear sway bar holder
• Rear wheel hex hard anodised
• Rear Carbon Shock tower
• Super light CAD optimised gearbox
• 2 Pad Slipper System with hard anodised plates
• Slipper Anti-Clock rotation adjustment
• High temperature resistant slipper pads
• Spur gear protection with laser Logo
• Precision plastic emulsion shock cap system
• Unique designed shock stud screws
• Hard anodised stock studs
• Black line shock spring
• Rotation protected spring holder
• Teflon hard coated shock shaft
• Hard coated shock body
• 6 Ball bearings servo system
• Quick release electronic plate
• Battery pad included
• Balanced motor position
• Body shell with optimised aerodynamic design

Specification:

Length: 410mm
Width：242-248mm
Height：148mm
Ground Clearance：40mm
Wheelbase: 282-284mm
Track：F:220mm /R221mm
Gear Ratio: S:81/21T
Weight: 1380g+/-10g (Race Condition)

Required to complete:
• 2-Channel Radio

• High-Performance Steering Servo

• Brushless Motor

• Electronic Speed Control

• 7.4v LiPo Battery

• Charger

• Tools

• Bodyshell Paint
