XERUN-V10-7.5T-Black-G3-BL-Motor SKU: HW30401110

First-rate Linearity



The built-in high precision Hall sensor combined with the high precision and balanced rotor will guarantee remarkable linearity of the motor.



Super Lightweight



The G3 Modified & Stock motors only weigh 161g and 132g respectively; the weights are reduced by about 11% & 21%

when comparing with the V10 G2 motor. With the light weights, drivers can easily adjust the balance of their vehicles.



Asymmetric Bearings



By comparison (with the V10 G2 motor), for improving the load-carrying capacity, the size of the front bearing of the G3 motor is increased by 26% ; while for lower resistance, the size of the rear bearing is reduced by 6%. The asymmetric bearing design will make the motor running more stable and smooth.



Great Heat Dissipation



The special shell design which makes the stator core (/laminations) expose to the air will maximize cooling, the big holes(*) on the front & rear end plates will guarantee outstanding heat dissipation of the motor. (*Note: the 5.5T~8.5T motors are mainly adopted by off-road vehicles, so the factory default end plates for those motors are the ones with small holes.)



Stepless Adjustable Mechanical Timing



The mechanical timing can be adjusted finely and smoothly; the skid-proof lines

at the rear end of the motor will guarantee stability of the timing after adjustment

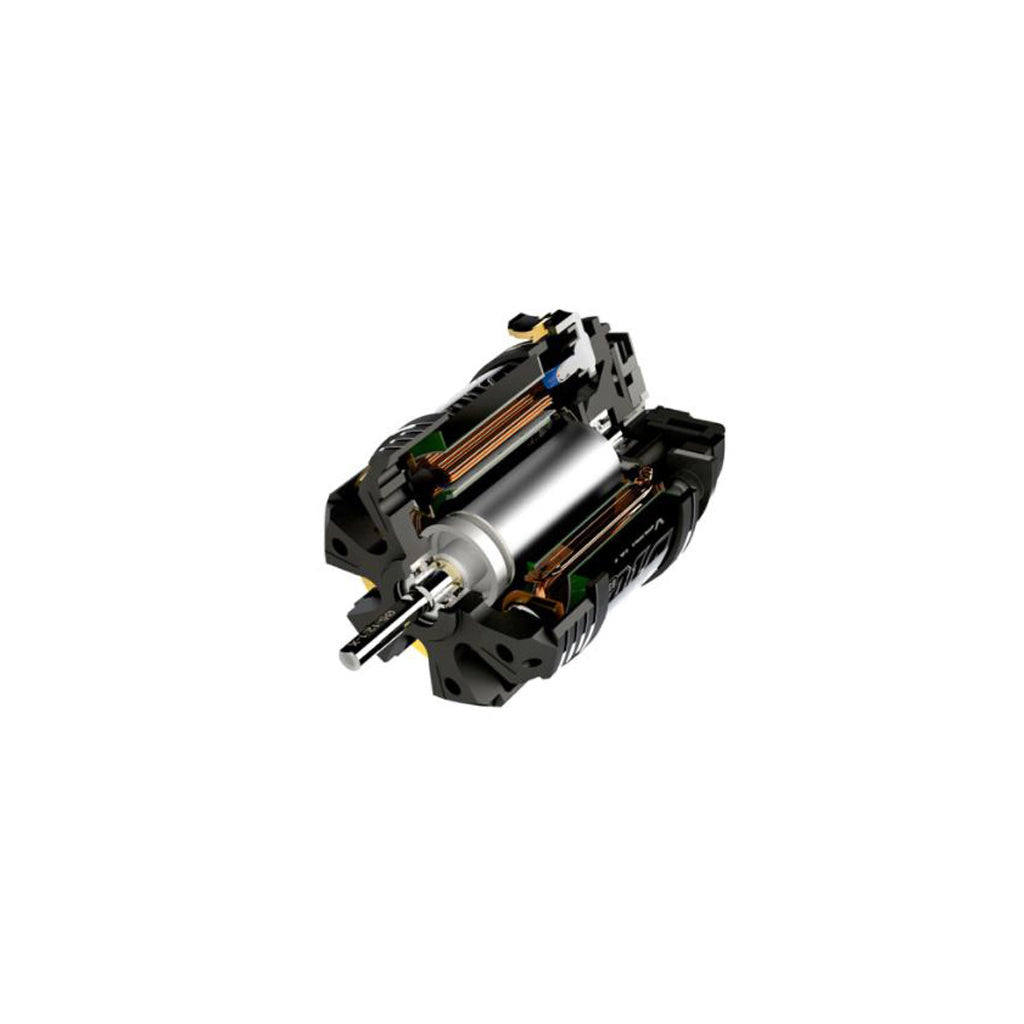

Re-buildable Structure



The detachable structure design for regular cleaning & maintenance will effectively prolong the service life of the motor and retain its efficiency.



Two Different End Plates



The end plates with big holes adopted by the 3.5T~5.0T & 10.5T~21.5T motors will guarantee excellent heat dissipation of the motor for on-road applications. The end plates with small holes used by the 5.5T~8.5T motors will effectively prevent sand or dirt from getting inside and damaging the motor for off-road applications. Users can purchase and mount the end plates with big or small holes as per actual needs.



High-quality Components



The use of high-performance stator core (/laminations), heat(200?)-resistant pure copper wire, heat(200?)-resistant

rotor with strong structure, international top brand high-precision and high strength bearings, and copper solder tabs with super current endurance will guarantee excellent performance and great durability.



BRCA/EFRA Approved





Specifications



Type



Scale - 1/10th

Brushed/Brushless - BL

Sensored/Sensorless - SD

Pole Count - 2



Relevant Parameters



KV Rating - 4420

LiPo Cells - 2S

No-load Current(A) - 3.3

Max. Power Output(W) - 346

Amp at the Max. Power Output(A) - 100



Size & Weight



O.D.(mm) - 35.9(1.41in)

Length (mm) - 51.2 (2.01in)

Shaft Diameter (mm) - 3.17 (0.125in)

Shaft Length (mm) - 13.3(0.52in)

Weight (g) - 161 (5.68oz)

Front Bearing - D9*D4*t4

Rear Bearing - D8*D3*t4



Other Parameters



Stock Rotor - 5-12.5

Timing - 20-50 Degrees(Adjustable)

Applications - 1/10th Drift, 2WD Off-road Racing
